SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of rubber fine grinder machine in China. Please feel free to buy high quality rubber fine grinder machine at competitive price from our factory.

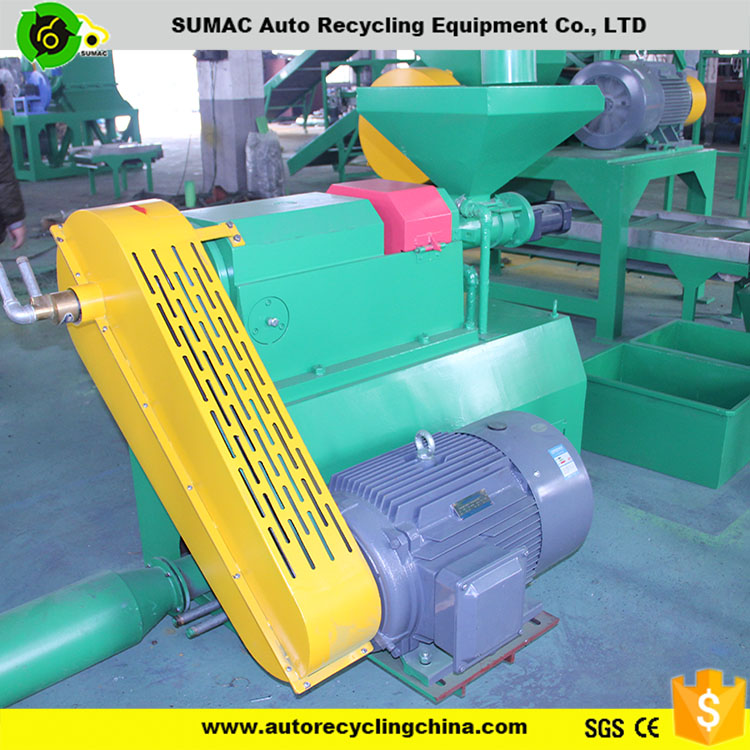

1. Introduction
This machine is widely used to mill 2~6mm pure rubber granules into rubber powder 30~100 mesh in ambient process.
2. Structure and Principle
● The machine use tungsten carbide as the milling surface of the milling disc, the milling disc base is made of special treated materials, crashing-proof, wearable, durable and good ductility;
● The whole machine adopts horizontal structure, most parts are CNC processed to ensure the installation accuracy. Compact structure, low power and vibration, easy operation and maintenance;
● The feeding system adopts ultra-red monitor controlled by PLC to maximum the output. The clearance between fixed and rotary discs are also controlled by PLC motors, which has greatly improved the quality and fineness of the rubber powder;
● Internal circulating water cooling system can ensure ideal temperature for the milling discs during production, the rubber powder will not get burned or sticky.
3. Technical Data
Model | CXFJ-28 |
Input size | 2~6mm |
Output | 30~100mesh |
Materials | EPDM, NBR, SBR, Waste tire rubber granules. |
Capacity | 40-150 kg/h |
Standard | CE |
Cooling | Water cooling system |
Powder | 30.2kw |
Dimension | 1920x1250x1320mm |
Weight | 1200kg |
4. TO MAKE SURE BETTER QUALITY
1) We use motor from Siemens, ABB/WEG is ok for your requirement
2) We adopts electrical control parts from CHNT/Schneider/Delixi
3) We use bearings from SKF
