SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of rubber tile hydraulic press making machine in China. Please feel free to buy high quality rubber tile hydraulic press making machine at competitive price from our factory.
1. Features
● Rubber tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.
● We can customize the moulds according to your special requirments.
● This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.
● The working layer can be designed as customer's request, 2, 4, 6, etc
● We have got CE, ISO, SGS.
2. Introduction
1). Item

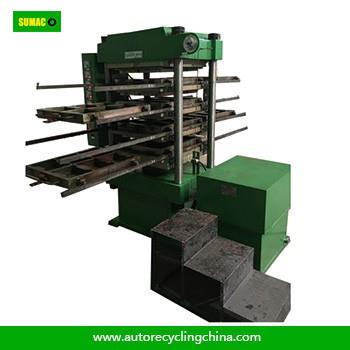

Four Columniation. Mainframe, crossbeam and oil jointing together.
2). Technical Data
Pressure. (max) | 0.5MN=50Ton |
Heating plate | 50x550mm |
Product size | 500x500mm |
Layer distance | 150~180mm |
Working layer | 4 layers |
Dia Plunger | Φ200mm |
Plunger stroke | 450mm |
Machine Power | 23Kw |
Plate temperature | ≤200°C |
3). Temperature control
Heated by electronic resistance. Each heating plate fixes an electronic self-regulating
instrument.Temperature be shown and controlled by instrument.
4). Mould
4 pcs of square mould(used to make 500x500mm rubber tile with thickness 15-25mm
or 35-50mm) and 8 pcs of under-mould (loading materials for preparation).
5). End product
6). Application
