SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of waste rubber granulator in China. Please feel free to buy high quality waste rubber granulator at competitive price from our factory.

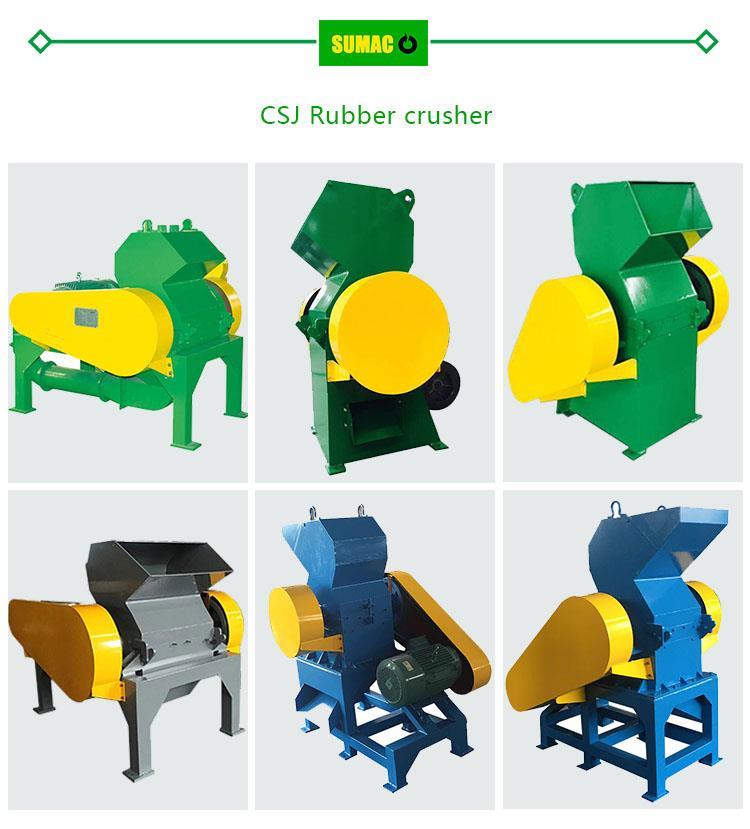

Waste Rubber Granulator
Main use
CSJ crusher is horizontal type machine, small cubage, low wastage, high capacity, easy operation, easy wash and maintains. This machine is suitable for pharmacy, chemical, food and construction industry.
Structure feature
This machine is composed of frame, motor, assistant drive plate, blade, screener, feeding room and so on. When the material going to the crushing room, the eight moving knives and four fixed knives cutting the material at the same time till the material size can through the screener, the big material would be cut again and again till the size is ok. The knife distance of the moving and fixed can be adjusted according to the material size.
Main Technical Parameter
| Model | 500 | 600 | 800 |
| Production capacity | 200-400 kg/h | 300-700 kg/h | 500-800 kg/h |
| Running speed of main bearing | 600 rpm | 380 rpm | 300 rpm |
| Feeding size | <250mm | <350mm | <450mm |
| Output size | 2-20 mm | 2-20 mm | 2-20 mm |
| Motor power | 22 Kw | 30 Kw | 30 Kw |
| Weight | 800 Kg | 1000 Kg | 1200 Kg |
| Dimension | 1300x1200x1600mm | 1400x1400x1800mm | 1750x1640x1900mm |
Remarks:
There are different power models for your choice.
This crusher is used to crush many kinds of material, like plastic, glass, aluminum, rubber and so on.
For light material, likes leather, foam, paper... The crusher could be equipped with air-cyclone to collect the output
